Word-line decoder for multi-bit-per-cell and analog/multi-level memories with improved resolution and signal-to-noise ratio

Abstract

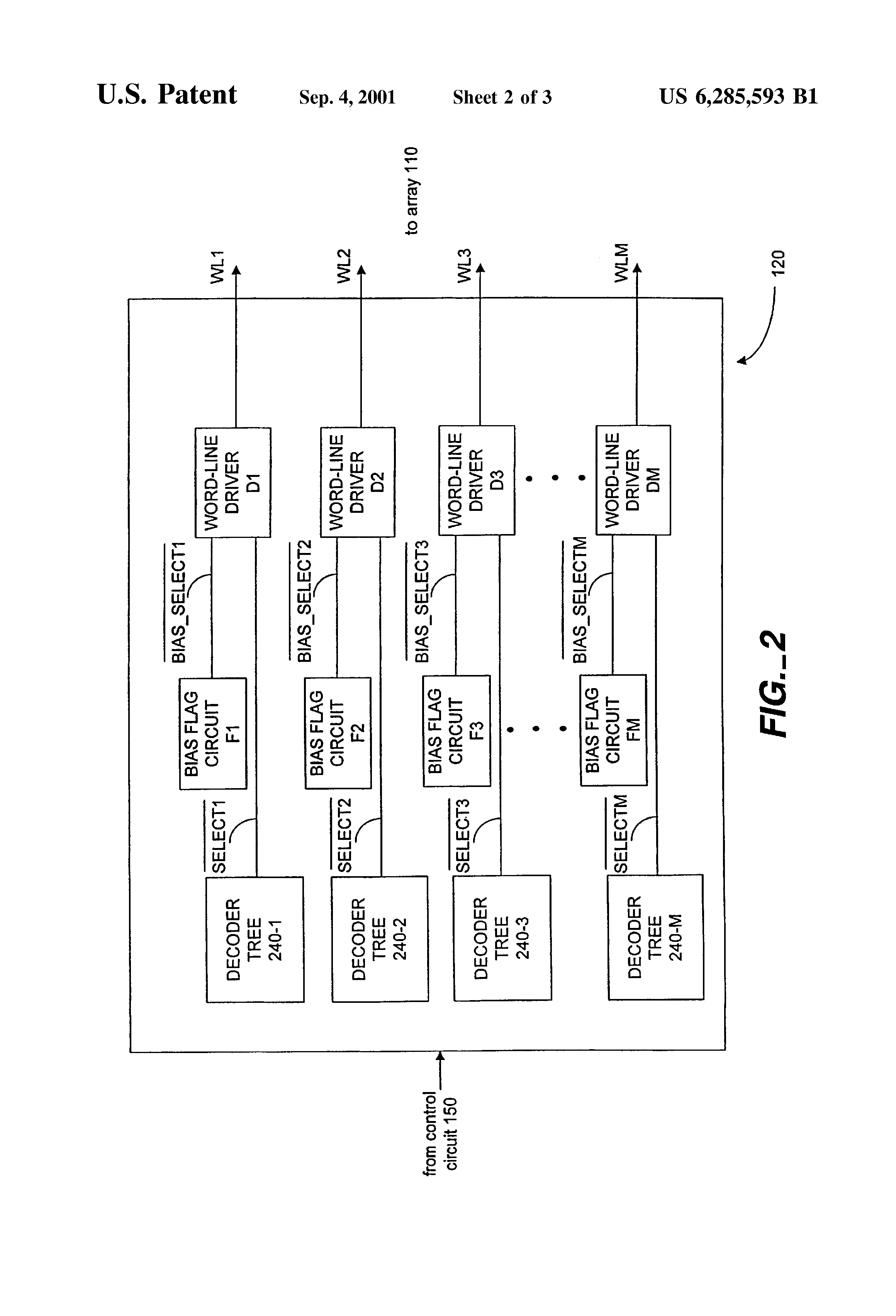

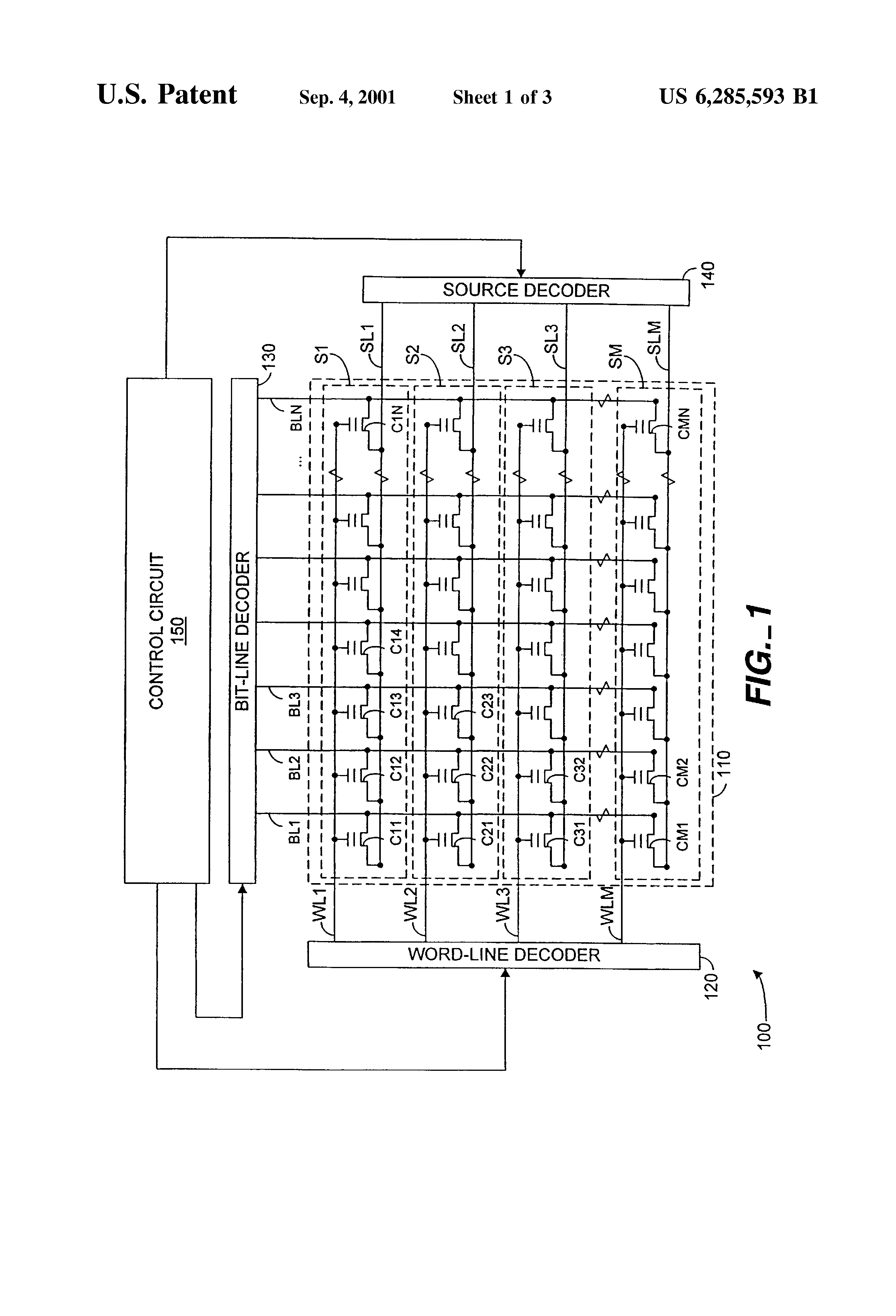

Applying a negative voltage to unselected word-lines during a read or verify operation reduces leakage current from over-erased memory cells, which allows the memory cells to be over-erased and therefore, to be programmed with lower threshold voltages. The consequence is a non-volatile memory having wider threshold voltage windows, which results in improved resolution and SNR for analog/multi-level and multi-bit-per-cell storage. During programming, the negative voltage is applied to word-lines containing unselected and erased memory cells in the same bit-line as the selected cell to prevent leakage current from over-erased cells, and a ground potential is applied to word-lines containing unselected and previously programmed cells in the selected bit-line to prevent drain disturb. In another embodiment, ground potential is applied to all the unselected word-lines during programming, which requires a programming load line and charge pump able to handle large currents and supply large voltages, respectively, due to the increased combined leakage current on the bit-line.
